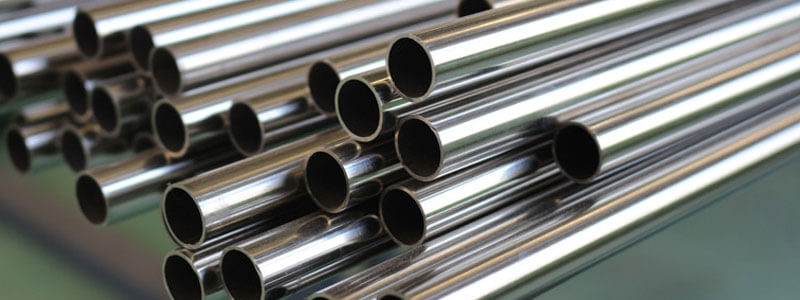

We are an eminent organization engaged in manufacturing, supplying and exporting a quality assured array of Stainless Steel Pipes. Under the offered array, we provide Stainless Steel Seamless Pipe, Stainless Steel Welded Pipe, Stainless Steel Fabricated Pipe and Stainless Steel Square Pipe. The offered pipes are known for being in-line with internationally laid quality norms as these are manufactured using high grade raw material. We also test these pipes prior to dispatch so as to ensure their flawlessness.
Stainless Steel Pipes Specifications |
||
Specifications |
: | ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358 |
Dimensions |
: | ASTM, ASME and API |
SS 304 Pipes |
: | 1/2″ NB – 16″ NB |
ERW 304 Pipes |
: | 1/2″ NB – 24″ NB |
EFW 304 Pipes |
: | 6″ NB – 100″ NB |
Size |
: | 1/8″NB TO 30″NB IN |
Specialized in |
: | Large Diameter Size |
Schedule |
: | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Type |
: | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form |
: | Round, Square, Rectangular, Hydraulic Etc |
Length |
: | Single Random, Double Random & Cut Length. |
End |
: | Plain End, Beveled End, Treaded |

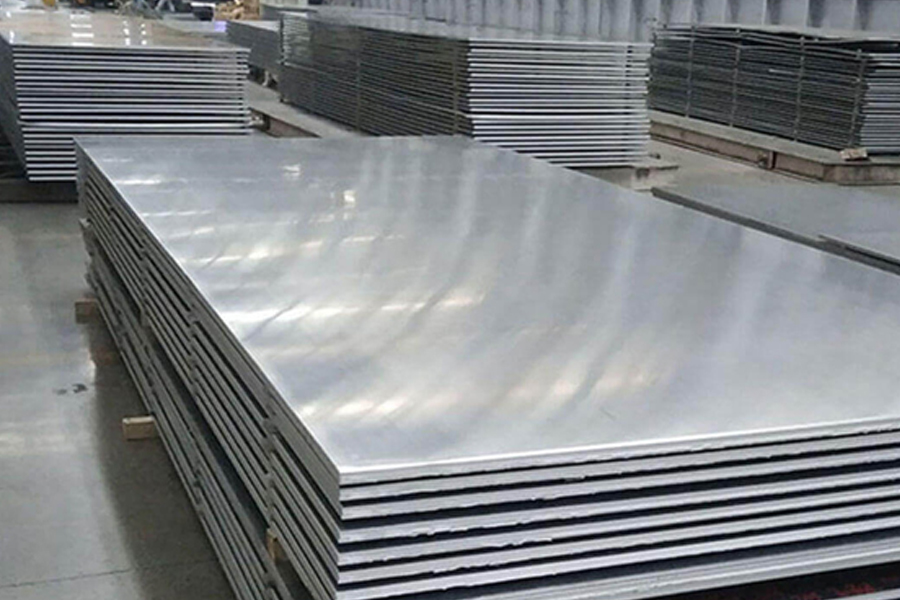

Our organization is involved in manufacturing, exporting, TRADINGand supplying a extensive range of Stainless Steel Plates to our clients. Used in various industrial applications, these plates are manufactured by the experienced professionals from high-quality raw material and advanced technology.
Stainless Steel Sheets & Plates Chemical Composition
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 304 |
0.08 max |
2 max |
0.75 max |
0.045 max |
0.030 max |
18 – 20 |
– |
8 – 11 |
– |
Stainless Steel Sheets & Plates Mechanical Properties
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 304 |
1.4301 |
S30400 |
SUS 304 |
304S31 |
08Х18Н10 |
Z7CN18‐09 |
X5CrNi18-10 |

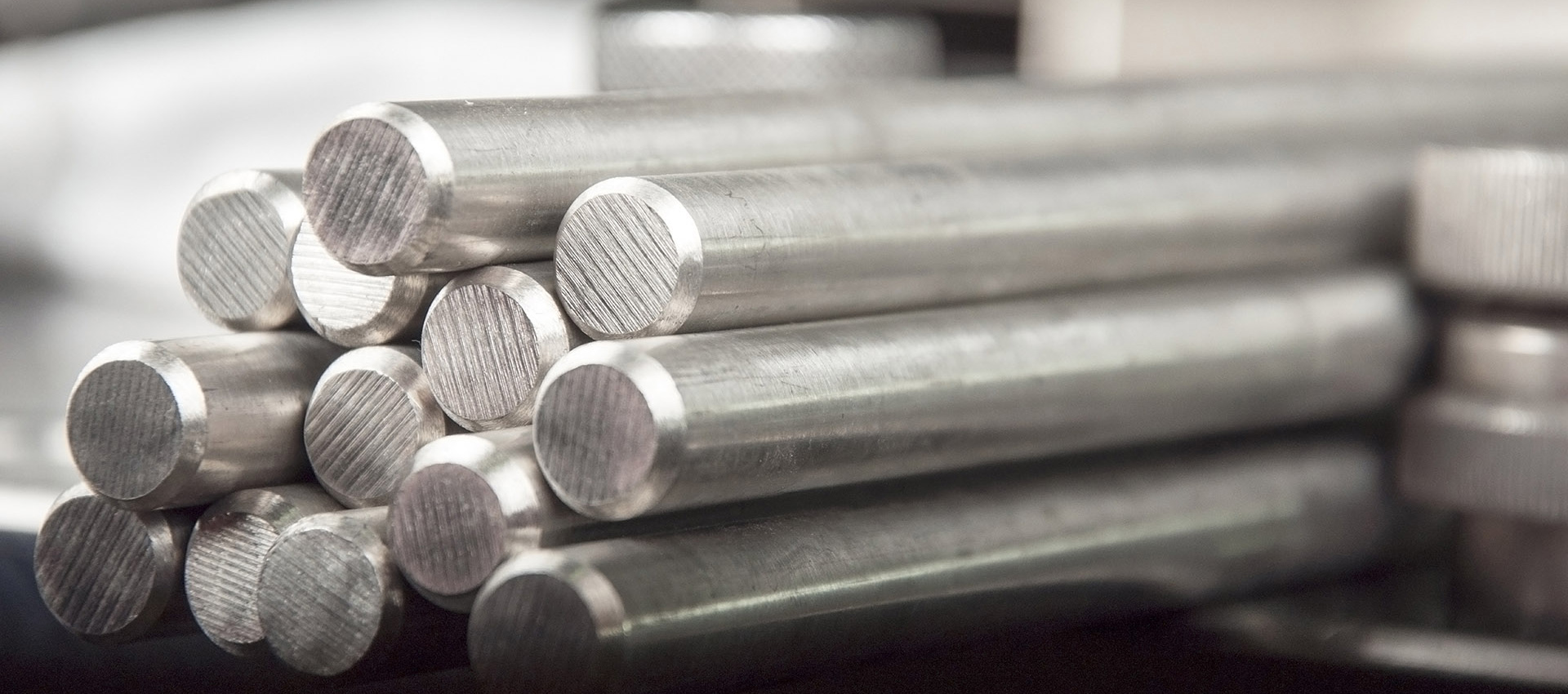

We are a leading name, which is engaged in offering a comprehensive range of Stainless Steel Rods, Bars & Wire. The offered range is manufactured utilizing superior grade raw material such as stainless steel and allied, procured from reliable vendors of the MARKET. In addition to this, the offered range is tested on different parameters to ensure its tandem with the highest quality norms and standards.
Stainless Steel Round Bar Specification
Stainless Steel Round Bar Specifications |
||
Specifications |
: | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
Dimensions |
: | EN, DIN, JIS, ASTM, BS, ASME, AISI |
SS 303 Round Bars |
: | Outside Diameter in the range of 4mm to 500mm |
SS 303 Bright Bars |
: | Outside Diameter in the range of 4mm to 100mm |
SS 303 Hex Bars |
: | 18mm – 57mm (11/16″ to 2-3/4″) |
SS 303 Square Bars |
: | 18mm – 47mm (11/16″ to 1-3/4″) |
SS 303 Flat Bars |
: | 1/2” to 10” in thickness range of 2mm to 150mm, |
Finish |
: | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
Length |
: | 1 to 6 Meters, Custom Cut Lengths |
Form |
: | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |

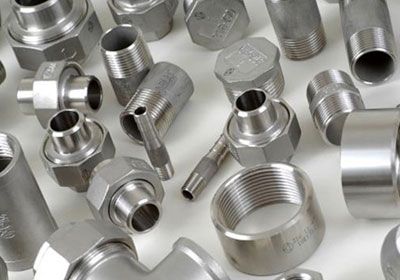

Stainless Steel Forged Fitting is high tensile strength, strong, stable, corrosion and rust resistance as well as their high efficiency. We manufacture these forged fittings using premium quality materials in accordance with the quality standards. These products are available in various sizes, shapes and design as per the specific requirements of our clients. Our esteemed clients can avail from us these products at most reasonable prices.
Stainless Steel Forged Fitting Specification
Stainless Steel Forged Fitting Specifications |
||
Specifications |
: | ASTM A182, ASME SA182 |
Dimensions |
: | ANSI B 16.11 S/W & SCRD (As per Gauge) (NPT / BSP / BSPT) |
Class |
: | 2000#, 3000#, 6000#, 9000# |
Size |
: | 15 NB – 100 NB |
Test Certificate |
: | EN 10204-3.1, EN 10204-3.2 Under Third Party Inspection |
SS Grades |
: | 304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S, 317L, 321, 347, 410, 420, 440C, 202 etc. |
We are a leading name, which is engaged in offering a comprehensive range of Stainless Steel Rods, Bars & Wire. The offered range is manufactured utilizing superior grade raw material such as stainless steel and allied, procured from reliable vendors of the MARKET. In addition to this, the offered range is tested on different parameters to ensure its tandem with the highest quality norms and standards.

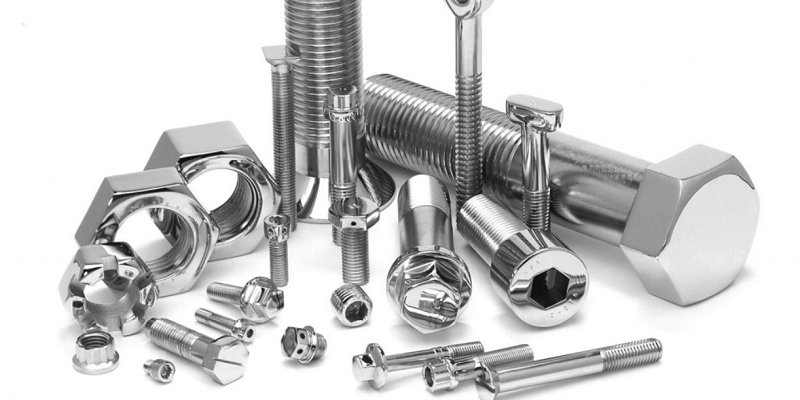

Stainless Steel Fastners Specification
Stainless Steel Fastners Specifications |
||
Specifications |
: | DIN931, ISO 4017, DIN, GB5783, ANSI, ASTM, EN, JIS, AS |
DIN Standard |
: | B.S. DIN931 DIN933 DIN912 DIN934 DIN6923 DIN603 |
Size |
: | M2 – M100 |

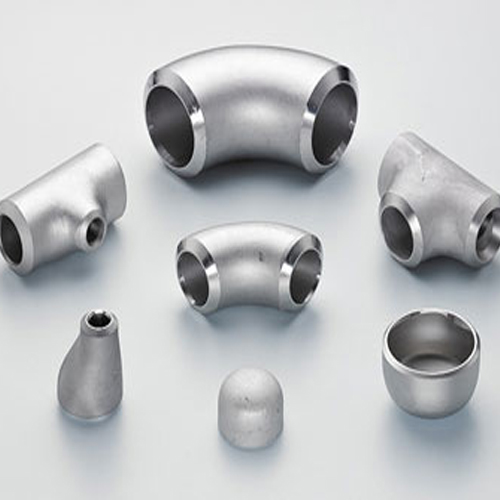

Stainless Steel Buttweld Fitting accomplish a lot of admiration by our clients owing to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency. These products are used in various commercial, industrial and automobile industries. We manufacture these fittings using high grade of raw material by implementing most ultra modern technology. These products are clients can avail from us at various sizes, shapes and design as per the requirements.
Stainless Steel Butt-weld Fitting Specification
Stainless Steel Butt-weld Fitting Specifications |
||
Specifications |
: | ASTM A403 / ASME SA403 |
Standard |
: | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Size |
: | 1/8” NB TO 48” NB |
Thickness |
: | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
Type |
: | Seamless / Welded / Fabricated |
