Berillium Copper

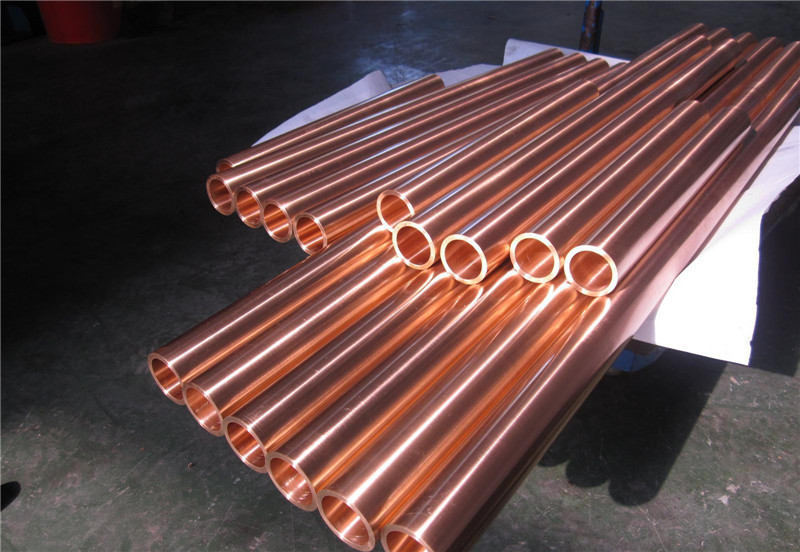

Berillium Copper Pipe & Tube

Berillium Copper Pipes and Tube Specifications
Specification : ASTM B196, 251, 463; SAE J461, 463; AMS 4533, 4534, 4535; AMS4650, 4651; RWMA Class 4
Standard : CuBe2, Alloy 25, QBe2,BrB2,DIN 2.1247, CW101C to EN
Size : Custom Diameter & Sizes, Random Mill lengths
Form : Round tube, Pipes, Hollow bars Custom shapes are available upon request


Berillium Copper Chemical Composition


Grade Be Co+Ni Co+Ni+Fe Cu
C17200 1.85-2.10% 0.20% Min. 0.60% Max. Balance

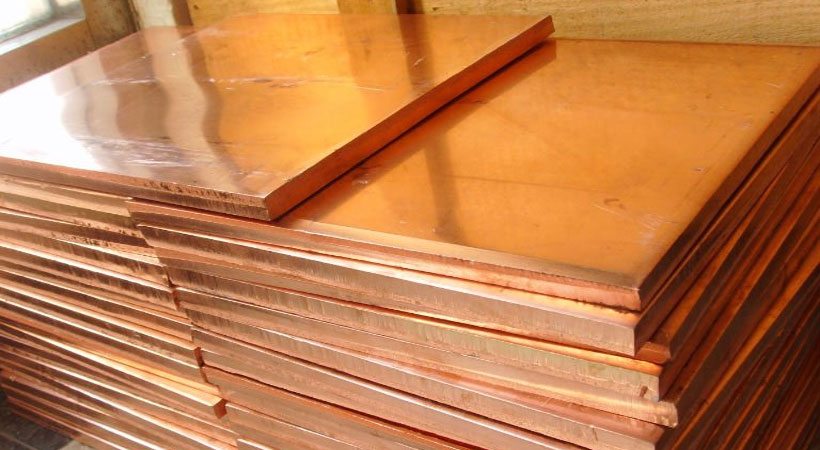

Berillium Copper Sheet & Plate

Berillium Copper Sheets & Plates Specification

Berillium Copper Sheet & Plate Specifications
Specification : C17200
European Standards : CuBe2, DIN 2.1247, CW101C to EN BeCu Chemical component

Berillium Copper Sheet & Plate Chemical component

Alloys number

Be

Ni Co

Ni Co Fe

Be Ni Co Fe Cu

C17200 / Alloys 25

1.8-2.0

≥0.2

≤0.6

≥99.5

Status

Tensile strength

(kg/mm3)

Hardness

(HV)

Conductivity

(IACS%)

Elongation

(%)

H

70-85

210-240

22

2-8

1/2H

60-71

160-210

22

5-25

O

42-55

90-160

22

35-70

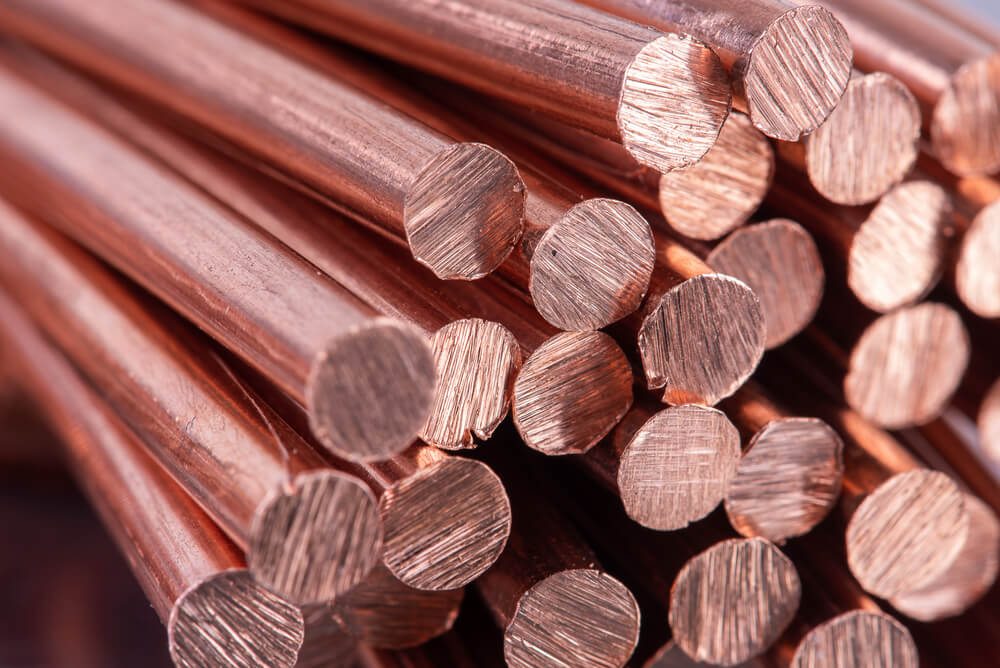

Berillium Copper Round Bar

POPULAR STEEL & ENGINEERING CO. offer a wide assortment of Beryllium Copper Rod, Beryllium Copper strips, beryllium copper rods, beryllium copper sheet,copper beryllium rod, copper beryllium rods, copper beryllium strips, copper beryllium sheet. it is a metal Alloys of copper and 0.5 to 2% beryllium, and sometimes with other Alloysing elements. Possessing significant metal working and operating performance qualities it is widely demanded by Engineering, Electrical and Electronics industries. Properties of Beryllium copper.

Berillium Copper Round Bar Specification

Berillium Copper Round Bar Specifications

Grade

: Dimensionally accurately

Features

: CuBe2-UNS C17200, CuBe2Pb-UNS C17300, CuCo2Be-UNS C17500, CuNi2Be-UNS.C17510, CuCo1Ni1Be Test

Certificate

: MTC, Lab TC from Govt. Approved Lab with Third Party Inspection. Corrosion Resistant Good Conductivity High tensile strength Strong Resonance Abrasion Property

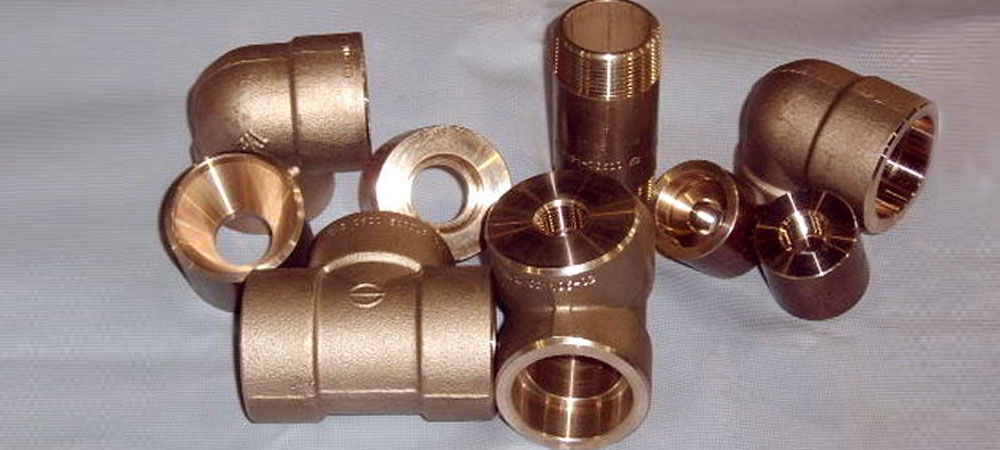

Berillium Copper Forged Fitting

offers high quality of Grade 2 Titanium Forged Threaded Fittings, which has some best features to offer such as highly efficient, rust proof, longer service life and more.

Berillium Copper Forged Fitting Specifications

Size

: 1/8"NB to 24"NB

Fitting Type

: 90, 45, Tee, Cross, Coupling, Reducing Coupling, Bushing, Cap, O'Let.

Connection Type

: Socket Weld Fittings : Elbow 90 Deg , Cross , Tee , Elbow 45 Deg , Coupling , Half Coupling & End Ca

Thickness

: 0.6mm to 20mm

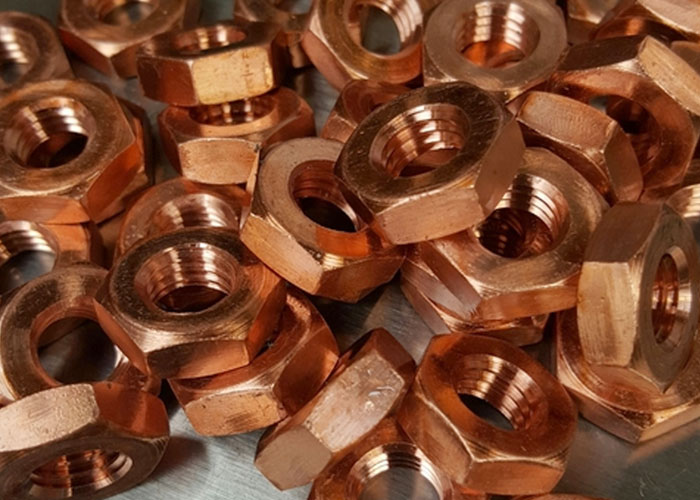

Berillium Copper Fastners

Beryllium copper fasteners are widely used automotive and aerospace industries because of their high strength and good electrical and thermal conductivities. There are two groups of copper beryllium alloys, high strength alloys, and high conductivity alloys. High strength alloys contain 1.6 to 2.0% beryllium and approximately 0.3% cobalt while high conductivity alloys contain 0.2-0.7% beryllium and higher amounts of nickel and cobalt. Beryllium copper fasteners are also less dense than conventional specialty copper fasteners. Copper beryllium fasteners physical and mechanical properties differ considerably from those of a normal copper fastener because of the nature and action of the beryllium content.

Berillium Copper Fastners Specification

Berillium Copper Fastners Specifications

Types

: Nuts, Bolts, Washers,

Size

: M5-M50

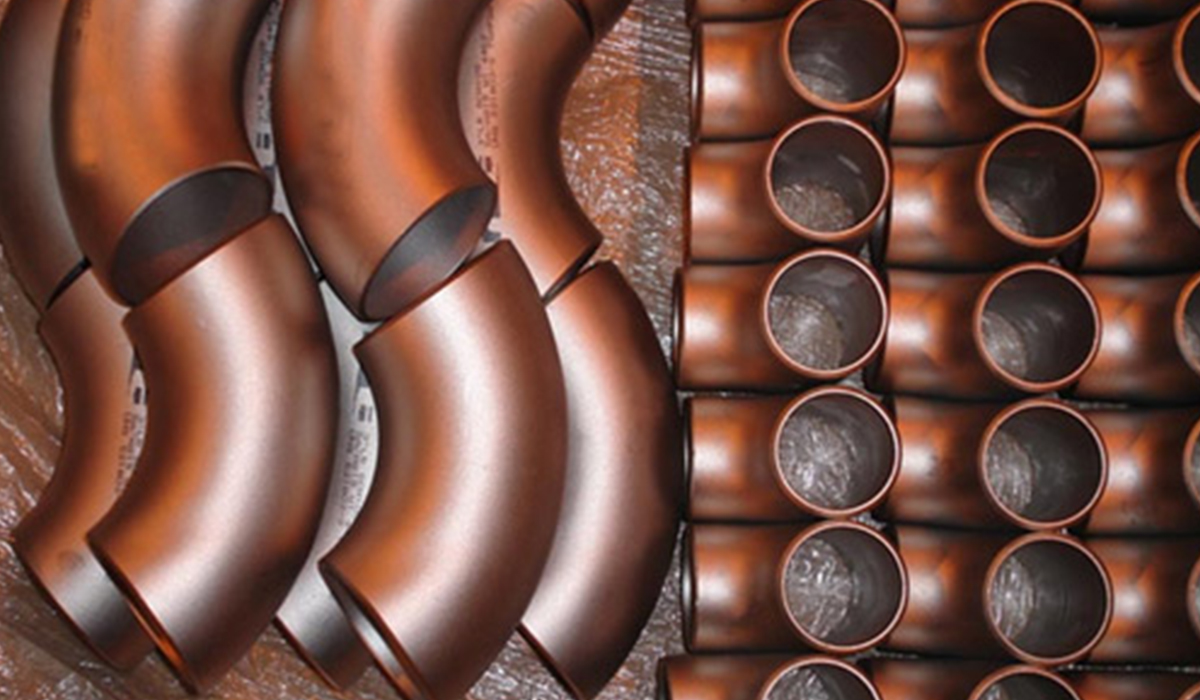

Berillium Copper Butt-weld Fitting

Berillium Copper Butt-weld Fitting Specification

Berillium Copper Butt-weld Fitting Specifications

Size

: 1/8"NB to 24"NB

Types

: Welded, threaded, BW, SW

Thickness

: 0.6mm to 20mm

Schedule

: SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120,SCH140, SCH160, XXS

Standard

: ASME/ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799

Diameter

: 1/4" To 24"

Buttwelded Fitting Types

: Elbow, Tee, Cross, Reducer, End Caps, Bends, Stub Ends - Lap Joint, Nipples, Outlet Fittings
