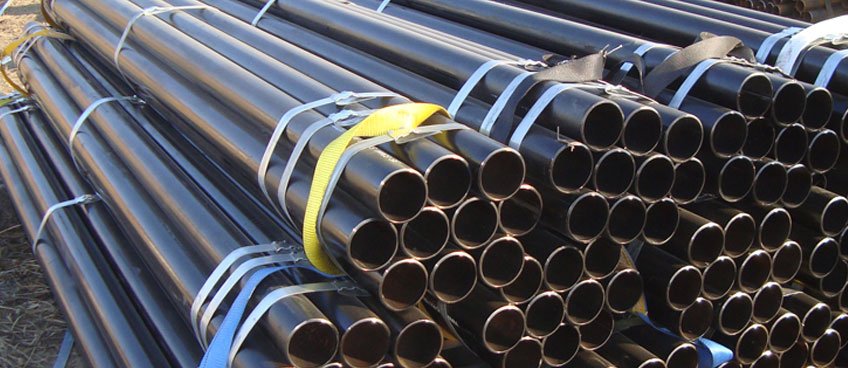

We are a prominent Carbon Steel Seamless Pipes Exporter, Importer, and Supplier based in Maharashtra. These Carbon Steel Seamless Pipes are widely acclaimed for their features of high tensile strength, smooth internal finish and hardness. These Carbon Steel Seamless Pipes are developed for energy-related applications involving OIL and gas drilling. Further, our range of Carbon Steel Seamless Pipes can be availed in different material and dimensional specifications.
Carbon Steel Seamless Pipes Specifications |
||
| A53 A106 API5L Grade B/C X42 Seamless Pipe | ||
| Size Range | : | 2″ – 24″ |
| Schedules | : | Standard (STD), Extra Heavy (XH), 100, 120, 160, XXH |
| Grades | : | PSL1 and PSL2 |
| A333 (Low Temp) Grade 1/6 Carbon Steel Seamless Pipe | ||
| Size Range | : | 1/2″ – 24″ |
| Schedules | : | Standard (STD), Extra Heavy (XH), 100, 120, 160, XXH |
| A53 API5L Grade B X-42 X-52 X-60 ERW (Electric Resistance Welded) Pipe | ||
| Size Ranges | : | 2″ – 24″ |
| Schedules | : | 10, 20, Standard (STD), Extra Heavy (XH) |
| Non-Schedules | : | .120wall, .156wall, .188wall, .203 wall, .219wall etc. |
| Grades | : | API-5L Gr B, API-5L Gr X42, API-5L Gr X52, API-5L Gr X60, API-5L Gr X65PSL1 and PSL2 |
| API5L Grade B X-42 X-52 X-60 DSAW/SAW | ||
| Size Ranges | : | 26″ – 60″ |
| Schedules | : | 20, Std, XH, 30 |
| Grades | : | API-5L Gr B, API-5L Gr X42, API-5L Gr X52, API-5L Gr X60, API-5L Gr X65PSL1 and PSL2 |
| Sizes (Seamless) | : | 1/2” NB – 60” NB |
| Wall Thickness available: | ||
| Schedule 20 | – | Schedule XXS (heavier on request) up to 250 mm thk. |

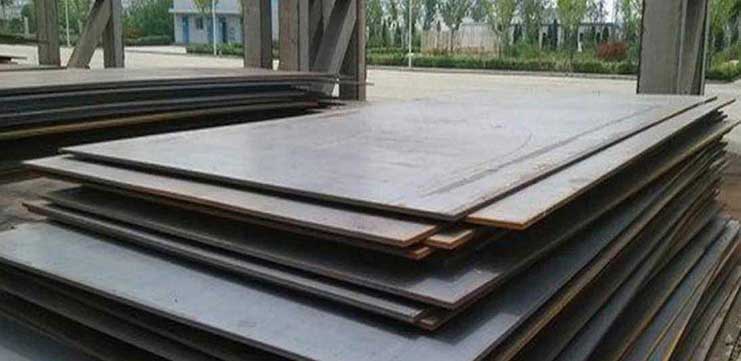

Combining the highest quality of materials and sophisticated technology, we are presenting Carbon Steel Plates that are made with supreme quality carbon and Alloys steel. Available in different grades and configurations, the Carbon Steel Plates offered by us hold high tensile strength and possess longer service life. Our complete in house facilities for quality check with all inspection requirements ensure the Carbon Steel Plates to possess excellent quality and performance.
Carbon Steel Sheets & Plates Specification
Carbon Steel Sheet, Plate & Coil Specifications |
||
| Specifications | : | ASTM A283, A516 / ASME SA283, SA516 |
| Thickness | : | 3/16″ to 24″ |
| Width |
: | 1 mm TO 200 mm THK in 1000 mm to 3000 mm width x 2500 mm / 5000 mm / 10000 mm |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR) |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip etc. |
We also STOCK Bar, Hexagon, Square, Round products in various dimensions and grades. We STOCK Stainless Steel, carbon and Alloys specialty steels supplied in the as rolled, annealed and normalized conditions. We offer cut to size and heat treatment through our service center.

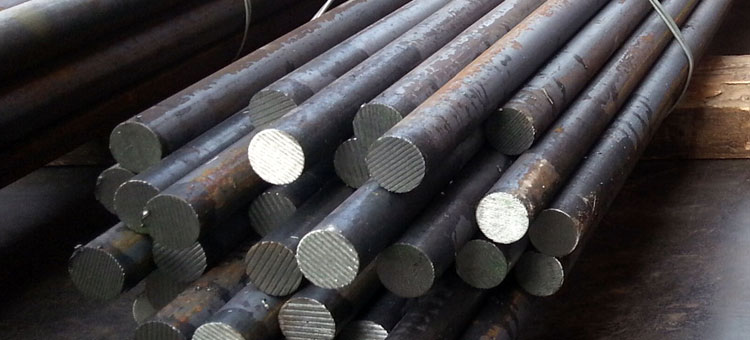

Carbon Steel Round Bar Specification
Carbon Steel Round Bar Specifications |
||
Specifications |
: | ASTM A105, ASME SA105 |
Dimensions |
: | EN, DIN, JIS, ASTM, BS, ASME, AISI |
Range |
: | 3.0 – 50.8 mm, Over 50.8 – 300mm |
Finish |
: | Bright, Polish & Black |
Length |
: | 1 to 6 Meters, Custom Cut Lengths |
Form |
: | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |

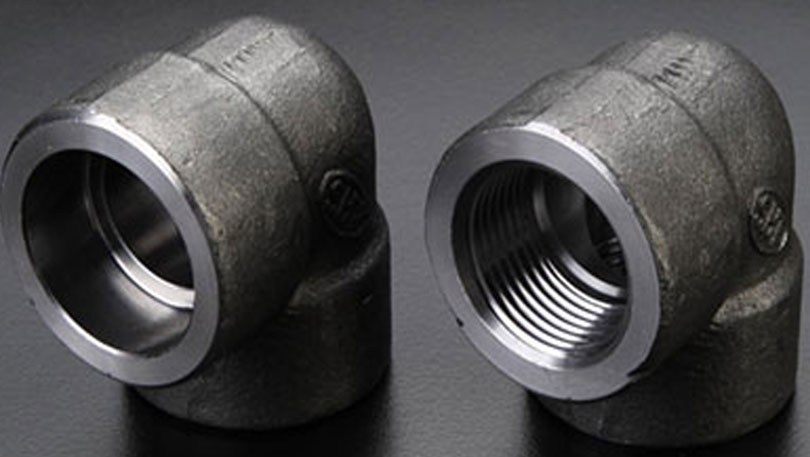

ASME 16.11 Carbon Steel Threaded Forged Fittings, Carbon Steel A105 Threaded Forged Plug, Carbon Steel A105 Hexagonal Plug, Carbon Steel A105 Threaded Forged Equal Tee, Carbon Steel A105 Threaded Forged Union Exporter, Carbon Steel A105 Lateral Tee, A105 Carbon Steel High Pressure Class 6000 Threaded Forged Fittings Supplier in India.
Carbon Steel Forged Fitting Specification
Carbon Steel Forged Fitting Specifications |
||
Specifications |
: | ASTM A105 & ASME SA105, A105N |
Standard |
: | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Class |
: | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Size |
: | 1/8″ NB to 4″ NB |
Type |
: | Threaded Forged Fittings |
We are engaged in manufacturing and supplying a very highly premium quality range of Carbon Steel Flanges. The company has carved an unparalleled position in the industry by making relentless efforts to cater to the clients with premium quality pipes, tubes and fitting components.

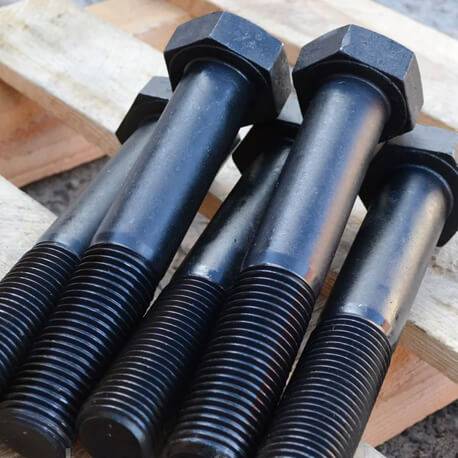

Carbon Steel Fastners Specification
Carbon Steel Fastners Specifications |
||
Specifications |
: | ASTM A 307 ASME SA 307 / ASTM A 563 ASME SA 563 |
Standard |
: | DIN, ASTM, BS and all International Standards |
Length |
: | 3 mm to 200 mm |
Size |
: | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Type |
: | Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts, Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts. |

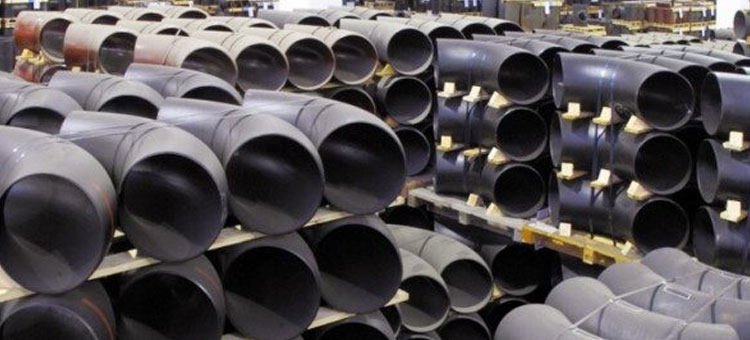

ASME SA234 Carbon Steel Short Radius Elbow Supplier, Carbon Steel 5d Pipe Bend, ASTM A234 Carbon Pipe Elbow, ASTM A234 Carbon Steel WPB Long Stub, Supplier of Carbon Steel A234 45 degree Elbow, A234 Carbon Steel Gr. WPB Cross Exporter in India.
Carbon Steel Butt-weld Fitting Specification
Carbon Steel Butt-weld Fitting Specifications |
||
Specifications |
: | ASTM A234 / ASME SA234 |
Standard |
: | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Size |
: | 1/8” NB TO 48” NB. |
Thickness |
: | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
Type |
: | Seamless / Welded / Fabricated |
